Xsynth

Ultra-Thin 25-key Synthesizer with integrated Master Keyboard and Audio/MIDI Interface

OVERVIEW

Mobile & Versatile Production Companion

The Xsynth is an ultra-mobile synth but it’s also so much more. As a fully-fledged synthesizer, it’s perfect for sketching ideas and turning them into reality – anytime, anywhere. Based on the acclaimed Xkey series, this portable synthesizer offers unmatched mobility in addition to an integrated MIDI and audio interface. Whether in the studio, on the road, or at home, the Xsynth is the ideal solution for those who value performance, flexibility, and design.

SHOP NOW

MEDIA GALLERY

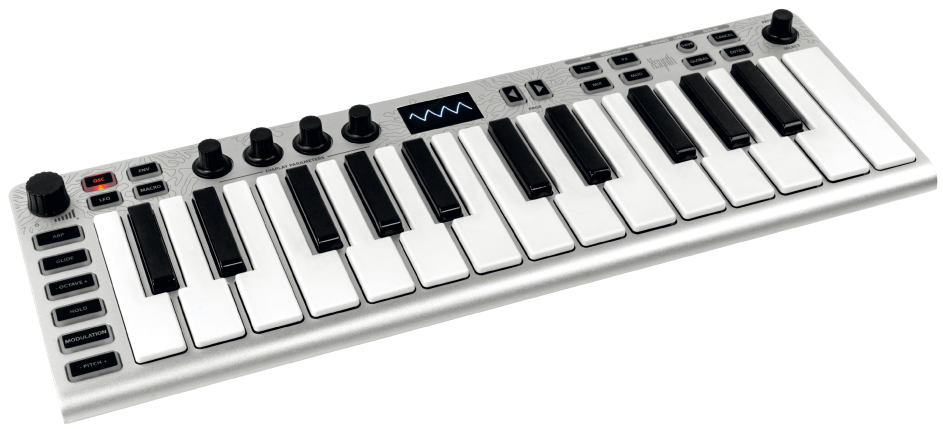

xsynth-angle_web

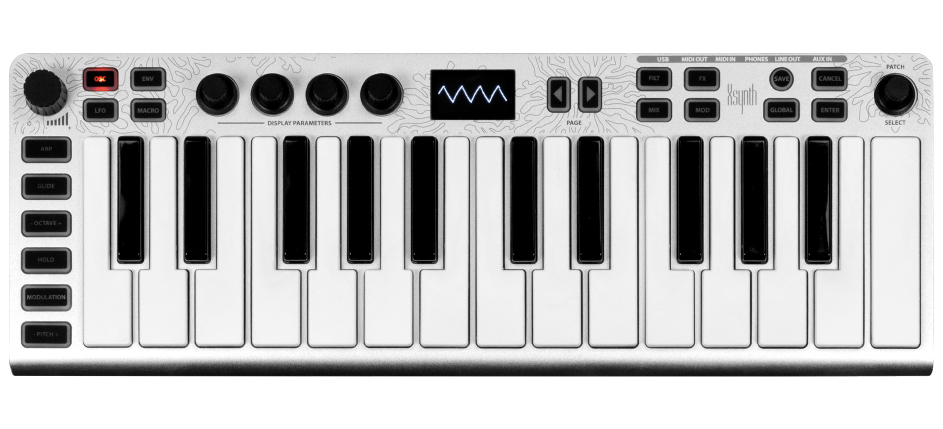

xsynth-top_web

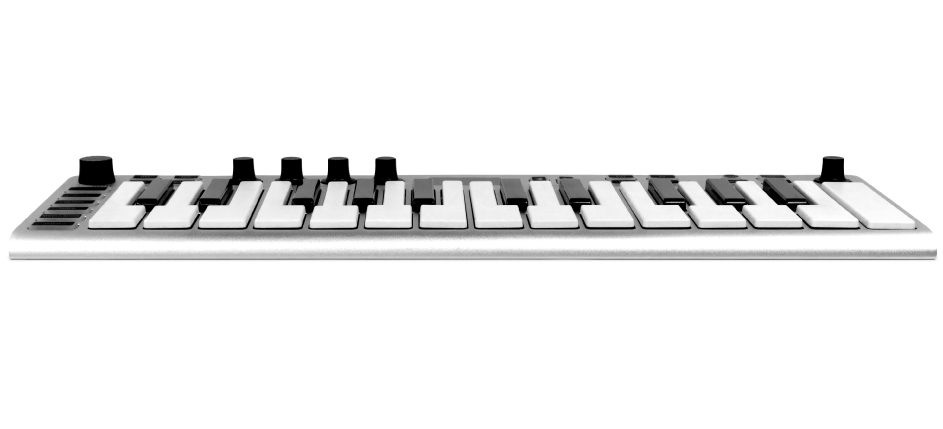

xsynth-front_web

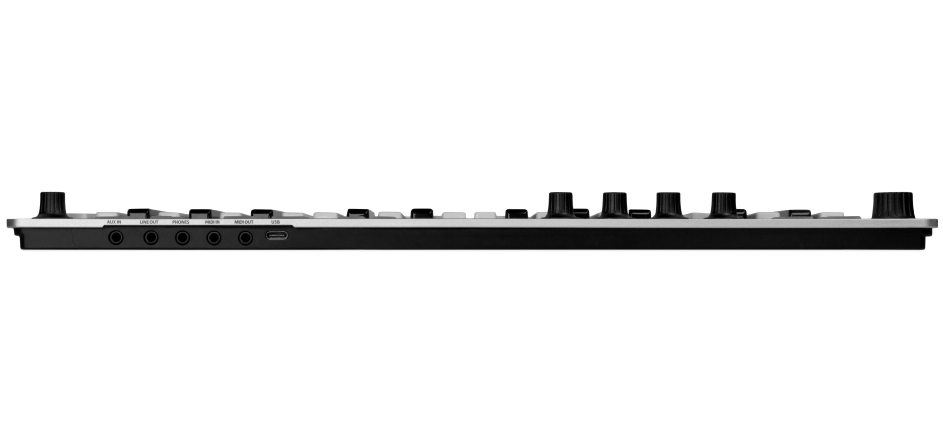

xsynth-rear_web
Xsynth-sides_web
xsynth-header_web

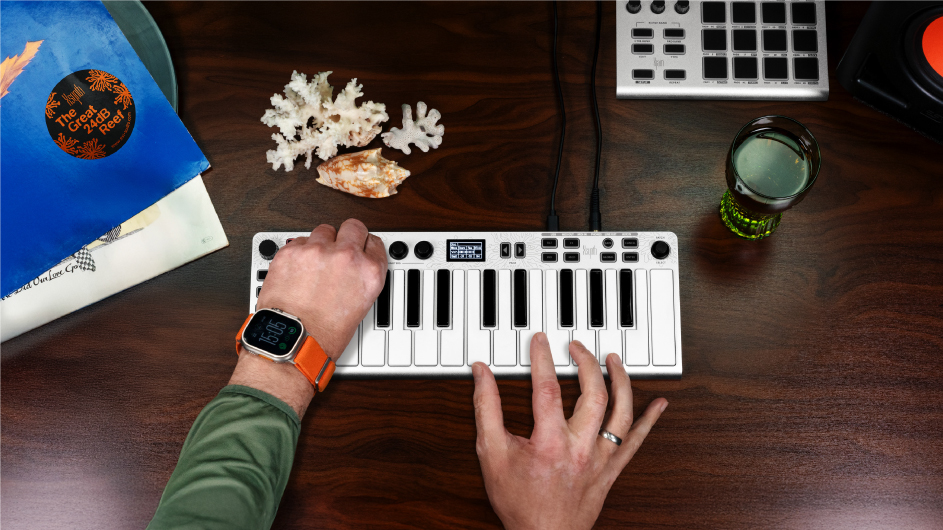

xsynth-hands-full_web

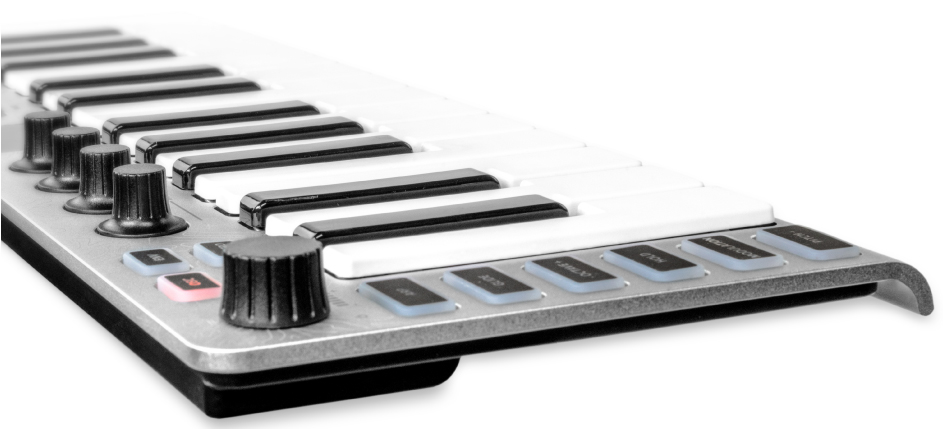

xsynth-body_web
xsynth-display_web

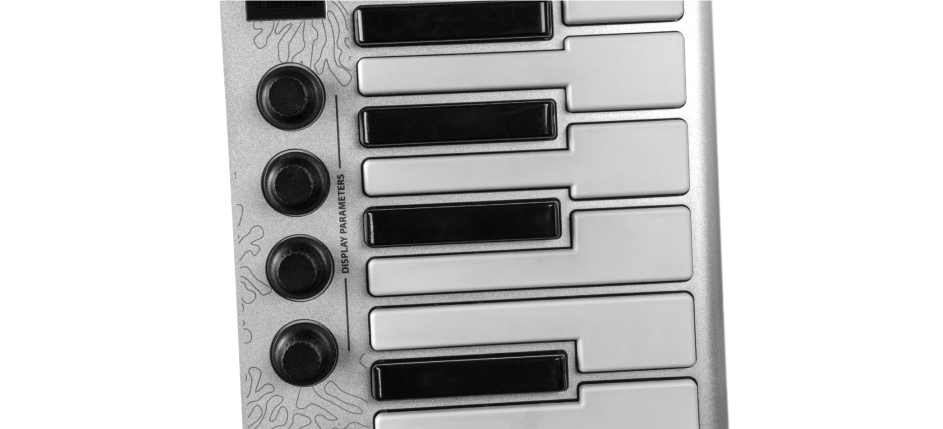

xsynth-display-parameters_web

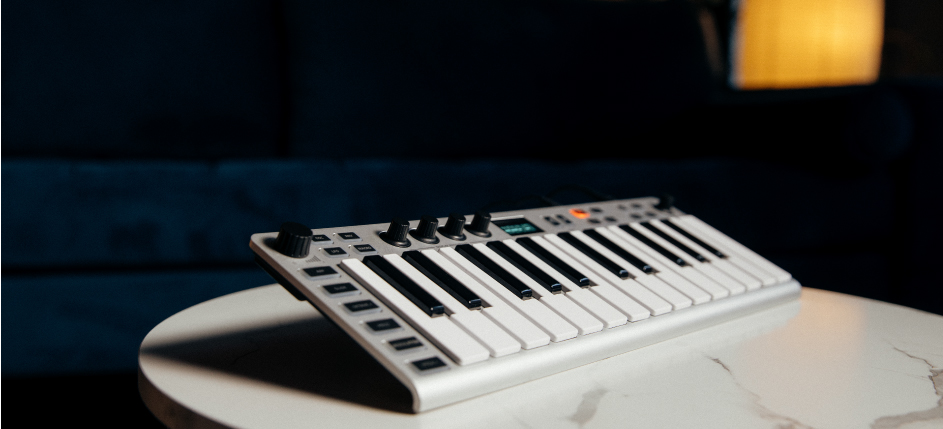

xsynth-lifestyle1_web

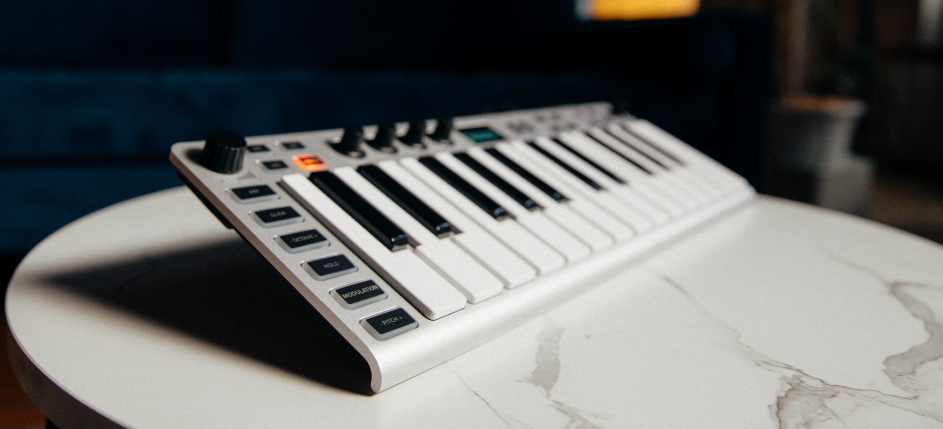

xsynth-lifestyle2_web

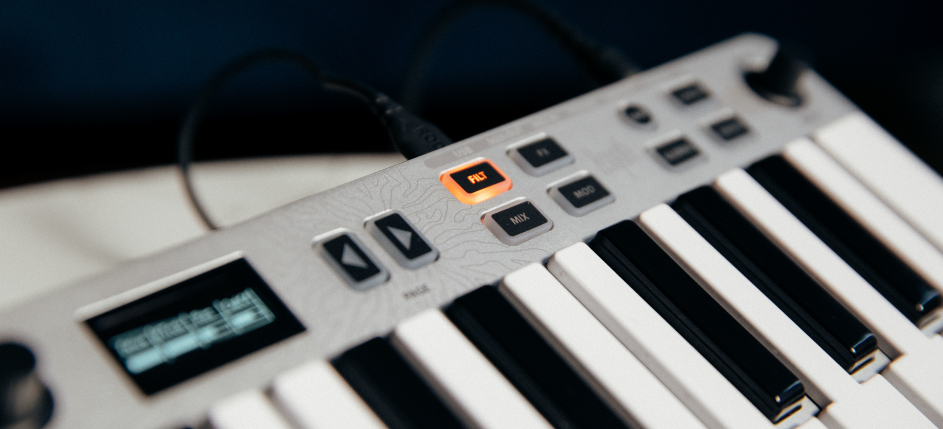

xsynth-lifestyle3_web
xsynth-lifestyle4_web

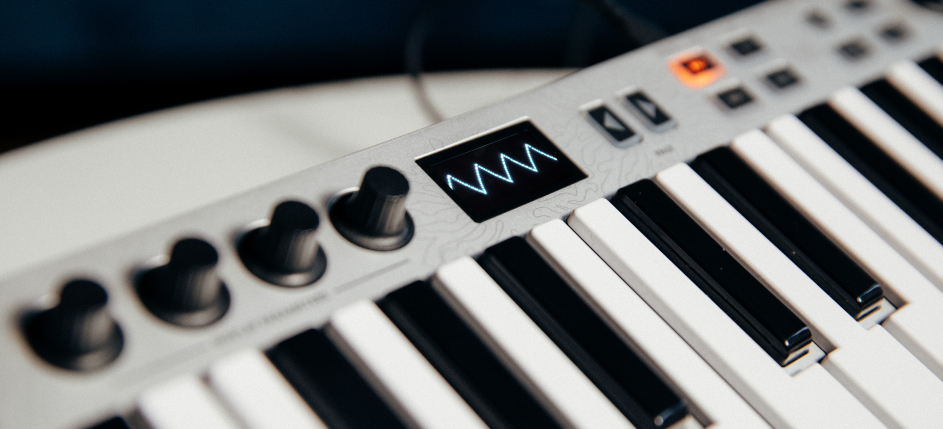

xsynth-lifestyle5_web

The ultimate production companion for creative freedom on the go!

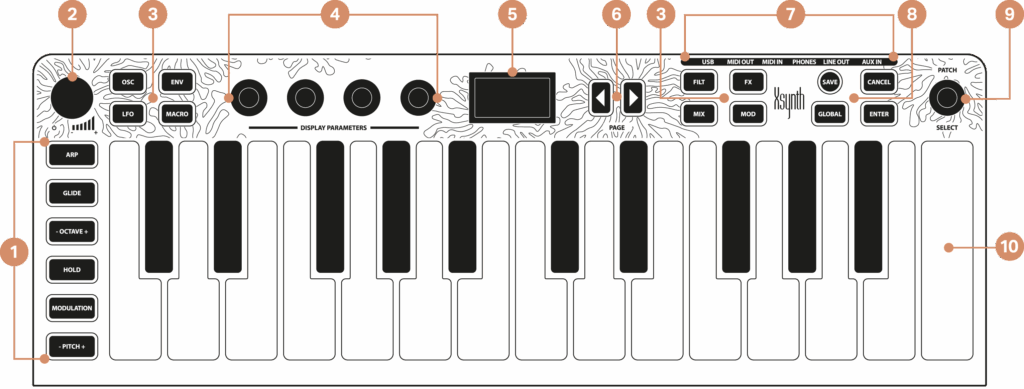

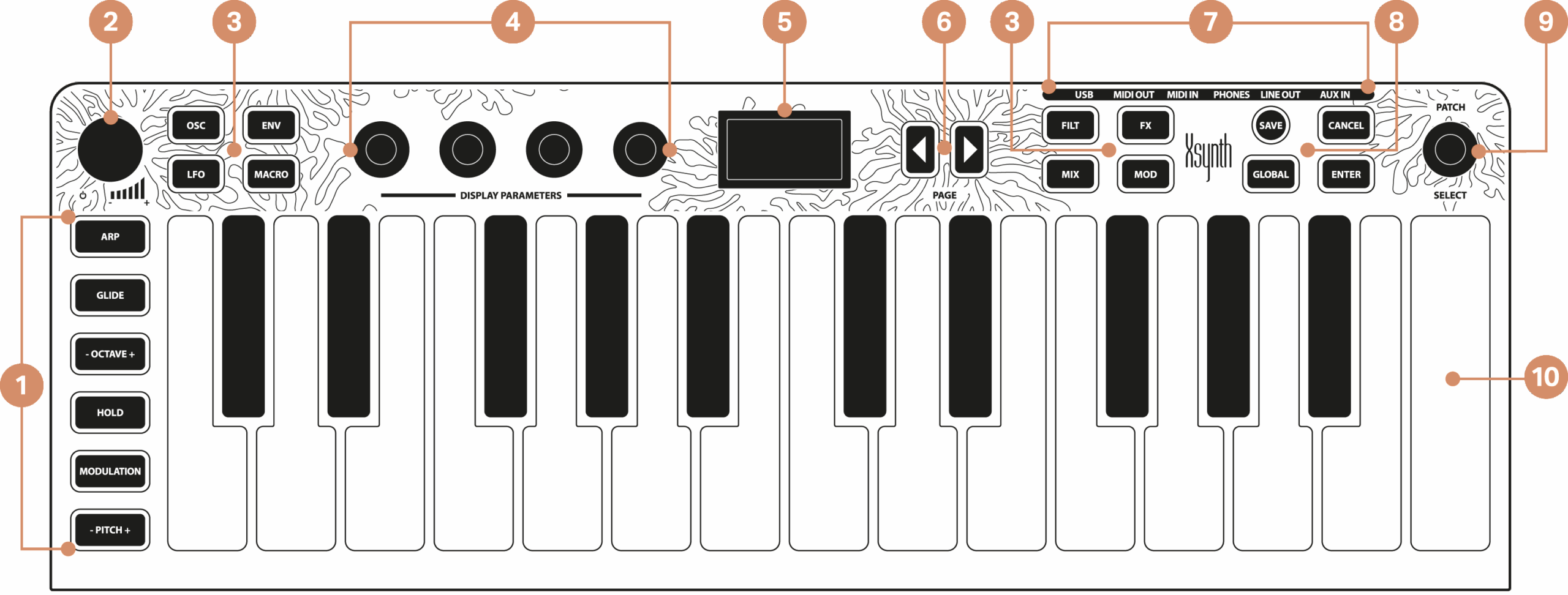

Connectors & Functions

  1. KEYBOARD CONTROL SMART BUTTONS
  2. POWER SWITCH AND VOLUME POTENTIOMETER
  3. MODULE SELECTION BUTTONS
  4. ENCODERS FOR DISPLAY PARAMETERS
  5. DISPLAY
  6. PAGE BUTTONS
  7. CONNECTORS
  8. SYSTEM BUTTONS
  9. PATCH SELECT ENCODER
  10. KEYBOARD

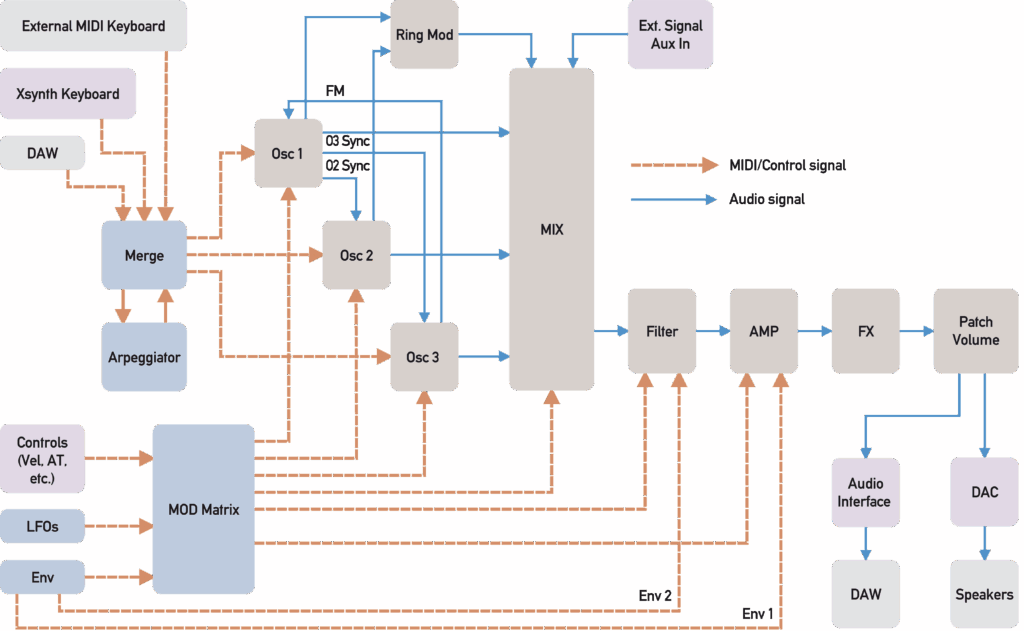

Synth Engine Schematic Diagram

Combining a 25-key keyboard with polyphonic aftertouch, a MIDI interface, an audio interface, and a built-in synthesizer, Xsynth serves as your musical sketchbook, expanding your creative horizons.

Features

Connectors

Xsynth may be ultra-thin and highly portable, but it’s fully equipped for serious performance. It features USB, MIDI In and Out, Headphone output, Line Out, and Aux In—giving you all the essential connections for studio, stage, or spontaneous creativity.

Multi-sensitive Keys

Xsynth comes with 25 velocity sensitive keys that follow exactly the octave range of traditional pianos. Despite the slim design they even provide polyphonic aftertouch.

Encoders and Display

All synthesizer functions and parameters can be accessed quickly via the encoders with real time updates and information on the Xsynth display.

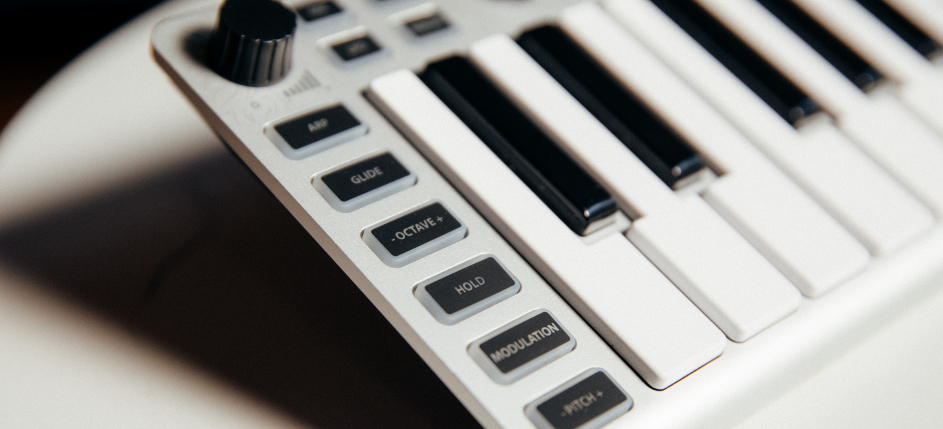

Smart Buttons

Durable rubber smart buttons provide features like Pitch Bend, Modulation, Hold, allow the change of the keyboard Octave range, Glide and you can enable or disable the powerful integrated Arpeggiator of Xsynth.



Bundled Software

Bitwig Studio 8-Track

Bitwig Studio 8-Track – the trim and effective DAW to start producing, performing, and designing sounds like a pro for use on up to eight tracks of audio / MIDI, incl. the Bitwig Essentials Package, a versatile selection of handpicked presets and sounds. Record instruments, create your arrangements, design new sounds, or just jam – every feature has been developed by musicians, for musicians!

Cubasis LE

Cubasis LE is the compact version of Steinberg‘s mobile multitouch sequencer, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze, no matter where you are, right there on an iPhone or iPad when connecting Xsynth.



WaveLab Cast

Whether you’re a podcaster, social media creator, musician, or home studio enthusiast, WaveLab Cast helps you refine and perfect your sound with professional-grade audio mastering and editing. This intuitive software from Steinberg transforms your computer with Xsynth into a full-fledged studio for recording, editing, analyzing, and publishing high-quality audio content.

Product Videos

  • The most portable synth on the market!
  • Less than 1″ thick – durable build quality to go wherever you go
  • Anodized aluminum frame with 25 full size velocity sensitive keys with polyphonic aftertouch
  • Powerful full synth with built-in MIDI Audio Class Compliant Interface
  • Includes Editor for Mac/Windows and iPad/Android to unlock deeper control and customization
  • 3 oscillators, 3 LFOs, 3 AHDSR envelopes, 16 mod matrix slots, 3 effect sections / EQ
  • Polyphony: up to 10 voices
  • Patch Memory: 512 sounds (4 banks of 128 patches each)
  • Arpeggiator, Glide, Octave Shift, Hold Functions
  • Pressure-sensitive modulation and pitchbend
  • 4+1 encoders
  • Headphone, line out and aux in via 3.5mm (1/8″) connectors
  • USB-C connection to Mac / PC (or other mobile devices)
  • Bus-powered
  • 3.5mm (1/8″) MIDI Input and Output
  • 24-bit / 96kHz audio interface (recording of synth engine and aux in directly to computer), fully class compliant
  • Works as MIDI interface (Xsynth itself via USB MIDI plus MIDI I/O can be bridged to USB)
  • Includes XSYNTH Editor App, a free companion application for Mac, Windows, and iPad that unlocks deeper control and customization of your XSYNTH.EWDM / ASIO driver for Windows 10/11 available
  • Dimensions: 15.2in x 5.8in x 1in
  • Weight: 1.4lbs
  • Micro USB connector (cable provided).
  • Activity indicator LED.
  • Xsynth 25-key portable synthesizer
  • Micro USB cable
  • Quick Start Guide
QUICK START GUIDE

Xsynth Editor App (Mac, Windows, iPad)
